Hera W10

New Momentum of Imaging

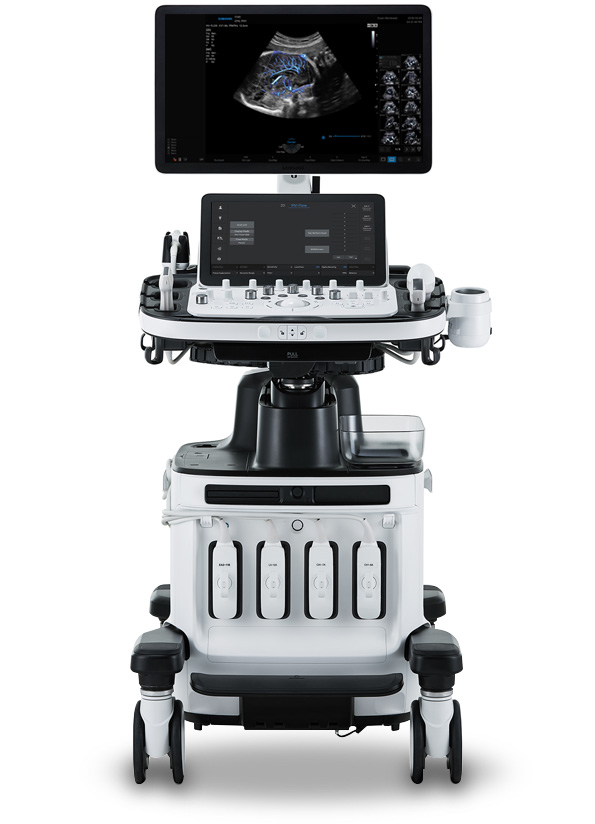

HERA W10

HERA W10, the premier model of the HERA platform, will help you get more insight in diagnosis with its intuitive visualizations,
precise analytic features, and instant operation. It is our commitment for Obstetrics and Gynecology applications to support
for life-long healthcare of women, diligently pursuing for new possibilities in ultrasound diagnosis.









Highlights

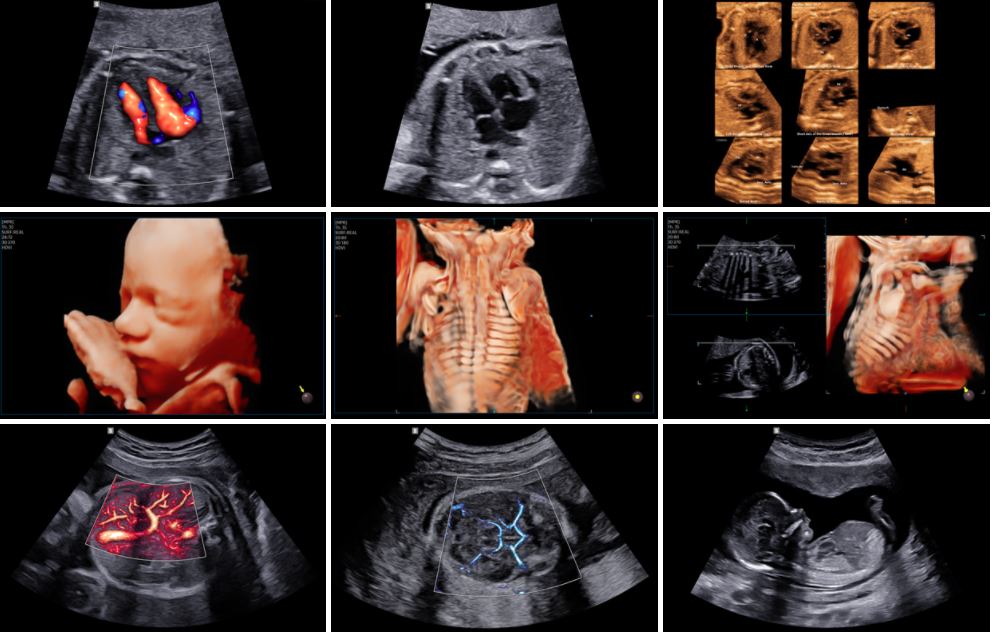

Clinical Images









Redefined imaging technologies
powered by Crystal Architecture™

Crystal Architecture™, an imaging architecture that combines CrystalBeam™ and CrystalLive™, based on S-Vue Transducer™, is to provide crystal clear image. - CrystalBeam™ is a new beamforming technology beneficial in delivering high-quality image resolution and increased uniformity of images. - CrystalLive™ is Samsung’s up-to-date ultrasound imaging engine with enhanced 2D image processing, 3D rendering and color signal processing, to offer outstanding image performance and efficient workflow during complex cases.

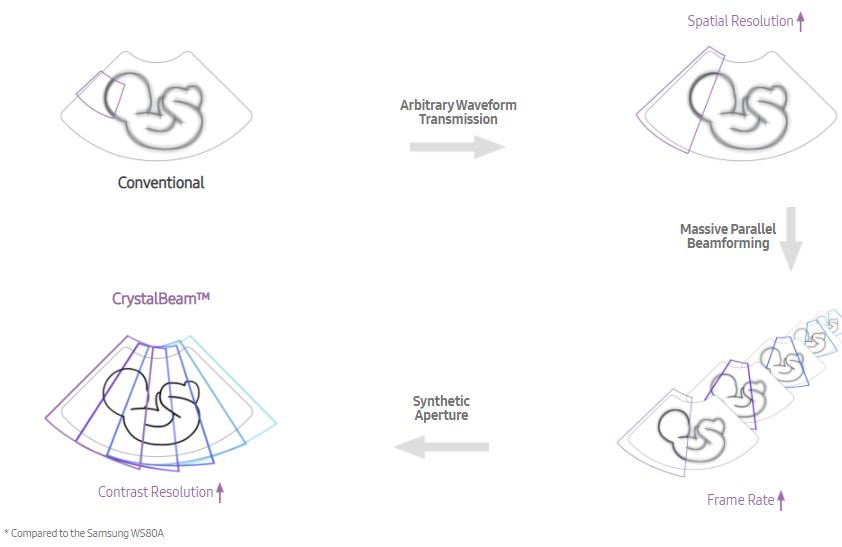

A new beamforming for in-depth image creation

CrystalBeam™ utilizes Arbitrary Waveform Transmission, Massive Parallel Beamforming,and Synthetic Aperture technologies to produce a faster frame rate and improved image uniformity.



Sophisticated 2D images
processed by CrystalLive™

CrystalLive™ helps you to make more confident diagnoses with fundamental 2D images.
Some major advantages of 2D images include shadow-suppressed images, lessened halo artifacts, and mitigated blurred area.

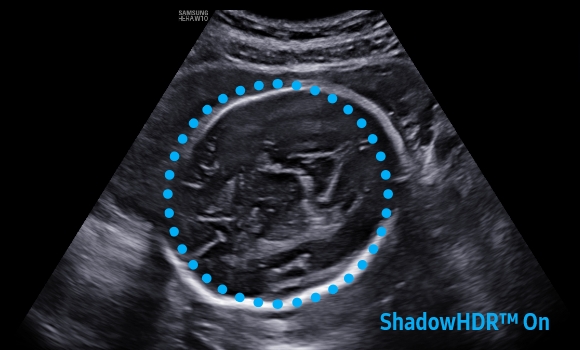

Visualize attenuated shadow area



ShadowHDR™ selectively applies high-frequency and low-frequency of the ultrasound to identify shadow areas such as fetal head or spine where attenuation occurs.

Improve 2D image quality with noise reduction filter



ClearVision provides clearer tissue boundaries using the noise reduction filter and generates sharp 2D images.

Clarify blurred area to provide clearer image



HQ-Vision™ provides clearer images by mitigating the characteristics of ultrasound images that are slightly blurred

Realistic description of 3D/4D performance

CrystalLive™ in 3D/4D provides users with more realistic and high-resolution images.
It outdoes conventional 3D imaging technologies in terms of viewing small parts and lighting effects.

Visualization of internal and external structures with volume rendering



CrystalVue™ is an advanced volume rendering technology that enhances visualization of both internal and external structures in a single rendered image using a combination of intensity, gradient and position.

Realistic expression of 3D anatomy

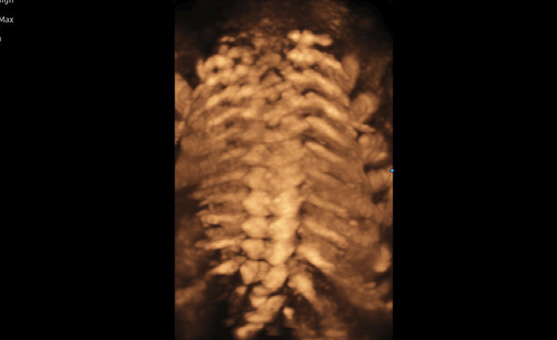

RealisticVue™ displays high resolution 3D anatomy with exceptional detail and realistic depth perception.

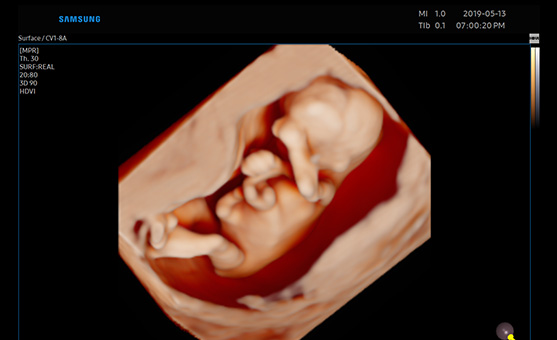

High Definition Volume Imaging

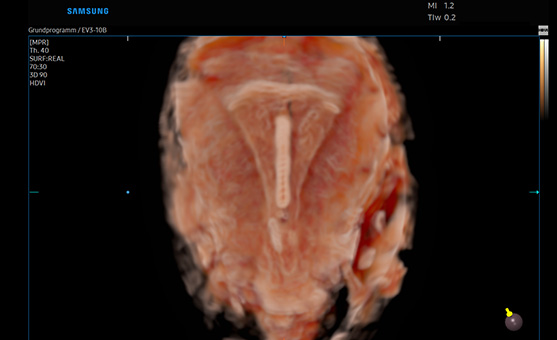

HDVI™ is a volume rendering technology that improves visualization of edges and small structures in volume data.

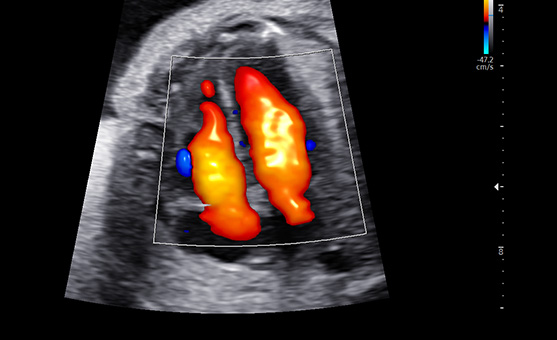

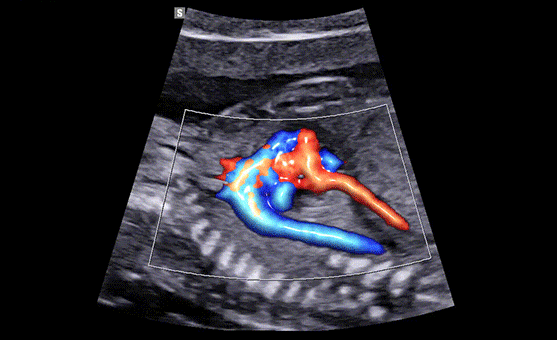

Detailed expression of blood flow dynamics

Color performance of CrystalLive™ has been improved to clearly visualize the hemodynamics of the blood flow.
Greater sensitivity resulting from new color signal processing allows for a more accurate detection of peripheral blood vessels,
microcirculatory blood flows, and volumes of slow blood flows.





Three dimensional-like visualization of blood flow

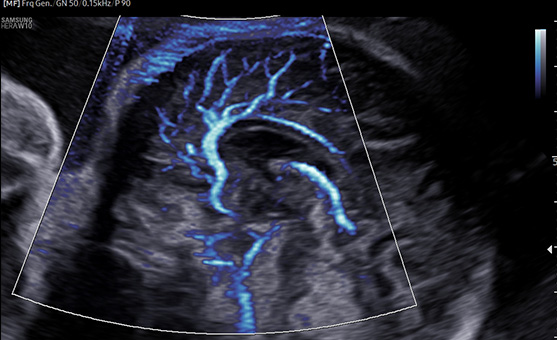

LumiFlow™ is a three-dimensional visualization of blood flow, which helps to understand the structure of blood flow and small vessels intuitively.

Visualization of slow flow microvascularized structures



MV-Flow™ offers a novel alternative to power Doppler for visualizing slow flow of microvascularized structures.

Directional power Doppler to examine peripheral vessels



S-Flow™, a directional Power Doppler imaging technology, can help to detect even the peripheral blood vessels.







Enriched diagnostic system,excellence in utilization

Images created by the Crystal Architecture™ technologies enhance various diagnostic features of Samsung ultrasound. HERA W10’s diverse technologies to examine the growth of fetus and women’s health in detailed reports will help you build more confidence and enhance the workflow in your diagnosis.

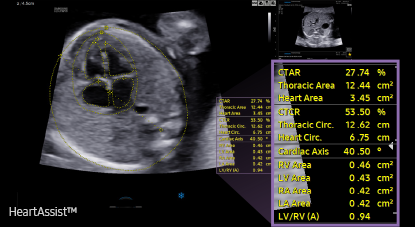

 HeartAssist™

A semi-automated reporting tool for fetal heart diagnosis



HeartAssist™, while based on big data, it semi-automatically classifies ultrasound image into measurement views required for fetal heart diagnosis and provides measurement results and distribution graph.

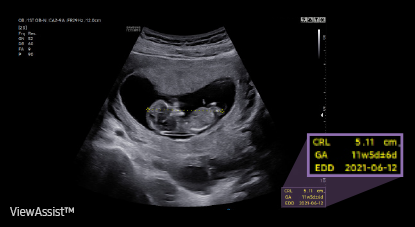

ViewAssist™

A semi-automated classification of the images and annotation of the structures



ViewAssist™ provides automatic classification of the ultrasound images and annotation of the structures.

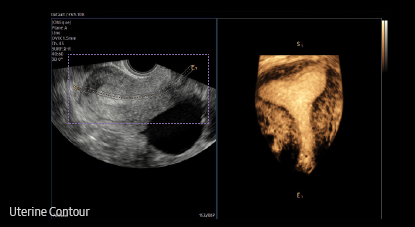

Uterine Contour

Help identify uterine malformation



Uterine Contour automatically extracts the centerline and thickness of the curved endometrium and provides a coronal view

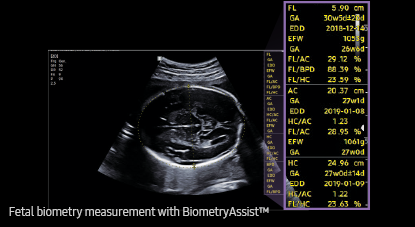

BiometryAssist™

A semi-automated measurement of fetal biometry



A semi-automatic technology for biometric measurement, BiometryAssist™, enables users to measure the growth of the fetus quickly while maintaining exam consistency.

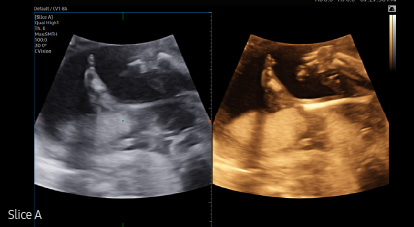

Slice A

Increases the contrast resolution through thick slide volume



Slice A is a feature that improves the contrast resolution of A Plane images. By compositing multiple A Plane images.

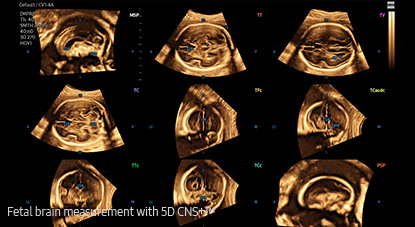

5D CNS+™ ¹ (Central Nervous System)

Fast brain measurement tool based on volume data



5D CNS+™ uses intelligent navigation to provide 6 measurements from 3 transverse views of the fetal brain

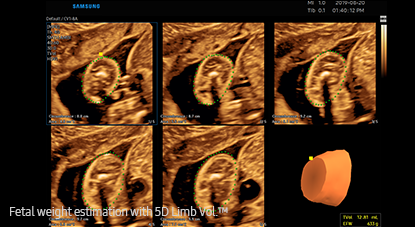

5D Limb Vol.™

Fast fetal weight estimation tool for checking growth of the fetus



5D Limb Vol.™ is a semi-automated tool to quickly and accurately measure upper arm or thigh volumes from 3 simple seed points on a single volume data set.

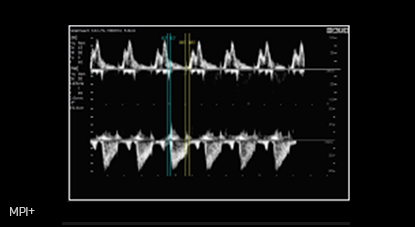

MPI+ (Myocardial Performance Index)

Semi-automatic LV MPI and RV MPI measurement



MPI+ is able to semi-automatically measure LV MPI and RV MPI, providing a high reproducibility.

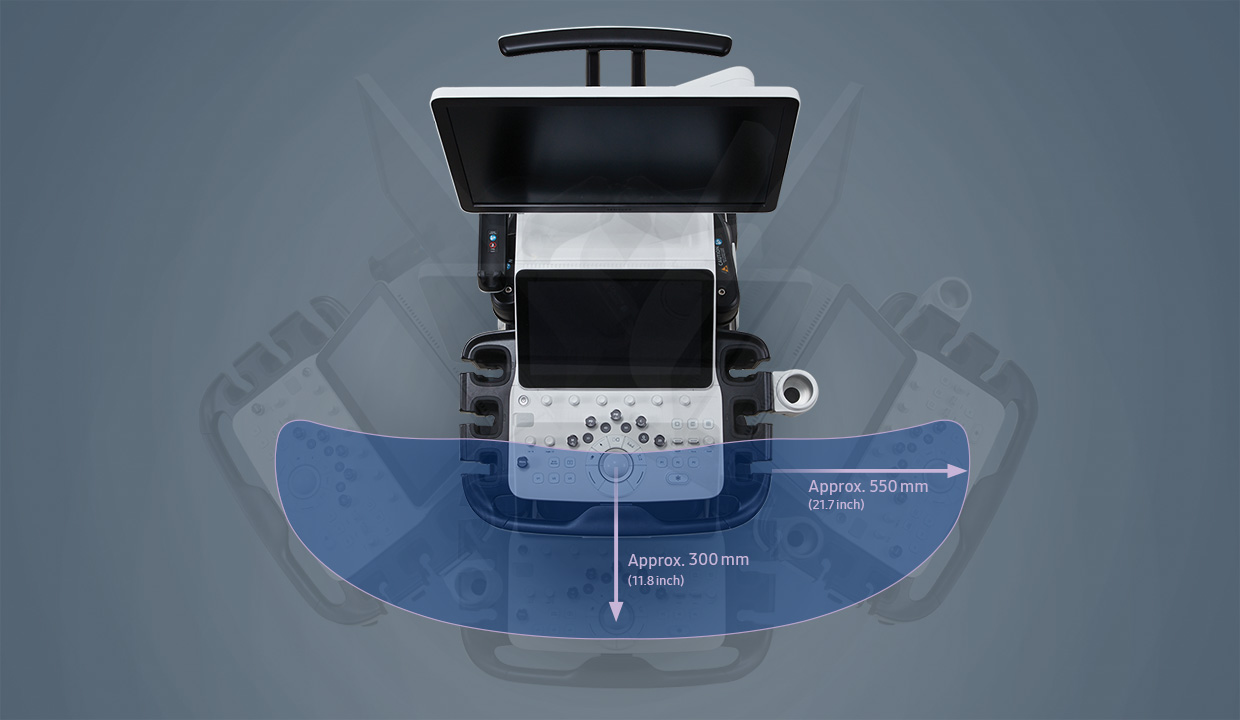

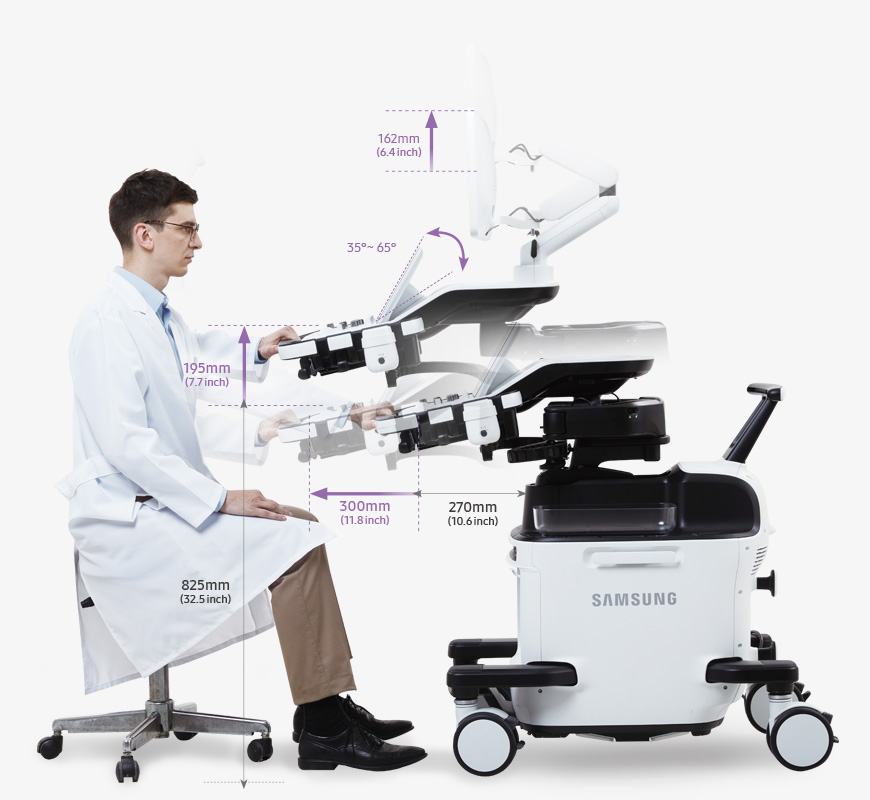

FreeForm™

FreeForm™ refers to Samsung’s new design theme. It was developed to provide a more comfortable diagnostic experience by reducing the need for movement from one spot to another. Our goal is to satisfy user’s working environment by applying a mechanism to the control panel in its widemoving range, as well as by considering a user’s arm reach. This enables it to offer a sufficient amount of space for the user’s knee.















Effective real-time collaboration, customizable for the way you work

We believe that a truly great system offers customer-centric working conditions. The collaborative solution enables users to cooperate, monitor, and educate in real-time regardless of where the users are located. The streamlined workflow supports your daily procedures by reducing keystrokes and by combining multiple actions into one. Users have the option of customizing its diagnostic settings based on personalized protocol, resulting in a more simplified exam process and faster workflow.

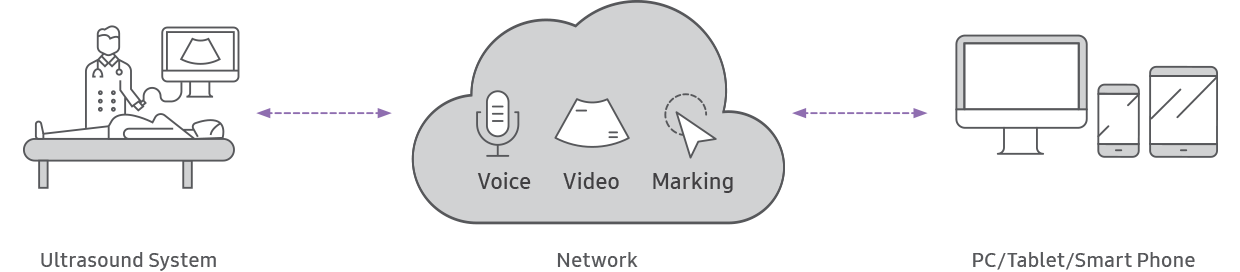

SonoSync™

Real-time image sharing solution

SonoSync™ is a real-time image sharing solution that allows collaborative communication for care guide and training between doctors and sonographers. In addition, voice chatting and real-time marking function are provided for efficient communication, and the MultiVue function is included to monitor multiple ultrasound images on a single screen.







HelloMom™

Simple transfer of fetal ultrasound images and clips

HelloMom™ is a simple and secure image sharing solution by generating QR code for the selected fetal images. Pregnant women and family are capable of downloading images of fetus by scanning on the QR code using smartphone, reducing the hassle of installing a separate application.

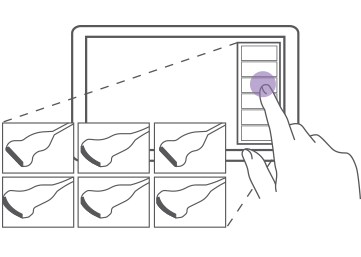

QuickPreset
for easy transducer preset

With one touch, the user can select the most common transducer and preset combinations. QuickPreset increases efficiency to make a full day of scanning simple and easy.

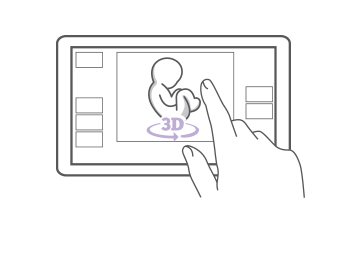

Touch Gesture
for your preferences

Touch Gesture intuitively allows to rotate, zoom and move while viewing the 3D image from the touch screen. In addition, 3D manipulations such as Oblique, MagiCut, etc. are conveniently operated.

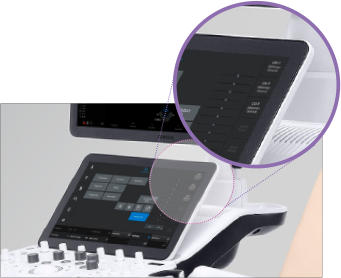

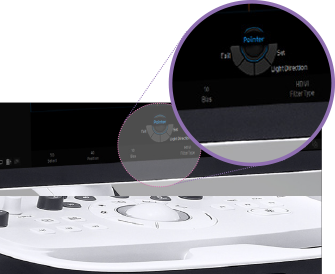

Contextual Button
for your convenient access

Depending on the user’s choice of ultrasonic inspection items, the required diagnostic functions may be assigned to the control panel buttons to reduce the hassle of menu selection



---   ---   ---   ---   ---   ---   ---   ---   ---   ---   ---   ---   ---   ---   ---   ---   ---   ---

---   ---   ---   ---   ---   ---   ---   ---   ---   ---   ---   ---   ---   ---   ---   ---   ---   ---
